Random and Structure Packing

Random and Structure Packing Specification

Connection
Loose or stacked packing, installed module-wise inside towers; does not require special mechanical connection.

Pressure
Suitable for both low and moderate pressure operations depending on application.

Accuracy
Designed to deliver uniform distribution and effective separation with high efficiency.

Function
Enhances mass transfer by providing a large surface area for gas-liquid contact in columns and reactors.

Size
Available in various sizes, typically 1 inch, 1.5 inch, 2 inch, 3 inch and custom dimensions as required.

Random and Structure Packing Trade Information

Minimum Order Quantity
1 Set

Supply Ability
5 Sets Per Month

Delivery Time
10-30 Days

About Random and Structure Packing

Structured packing is a range of materials that are specially designed for use in distillation and absorption columns, as well as chemical reactors. They usually consist of thin corrugated metal plates or gauzes, designed to force fluids on complicated paths throughout the column. The design is intended to ultimately produce a large surface area for contact between different phases.

Structured packing is made from a variety of materials including corrugated sheets of perforated embossed metal or wire gauze. The resulting product is an open honeycomb with inclined flow channels producing a high surface area coupled with a low gas flow resistance. Enhancements are often chosen to maximize liquid spreading which are ideal for applications with low pressure and irrigation rates

Specification

Product Type : Structure Packing
Technique : CentPro
Pressure : 1 bar
Diameter : 500 mm
Surface Finishing : Mirror,Mirror or Matt ,Mirror or Matt Finish
Design : Standard
Size : 200 , 250,350 , 500, 750
Shape : Circular
Capacity : 100 cubic meter
Sizes : 200 , 250 , 350 , 500 , 750
Diamter : 200 - 3000 mm
height : 210 mm
Installation : Installation service available

Types and Materials for Diverse Applications

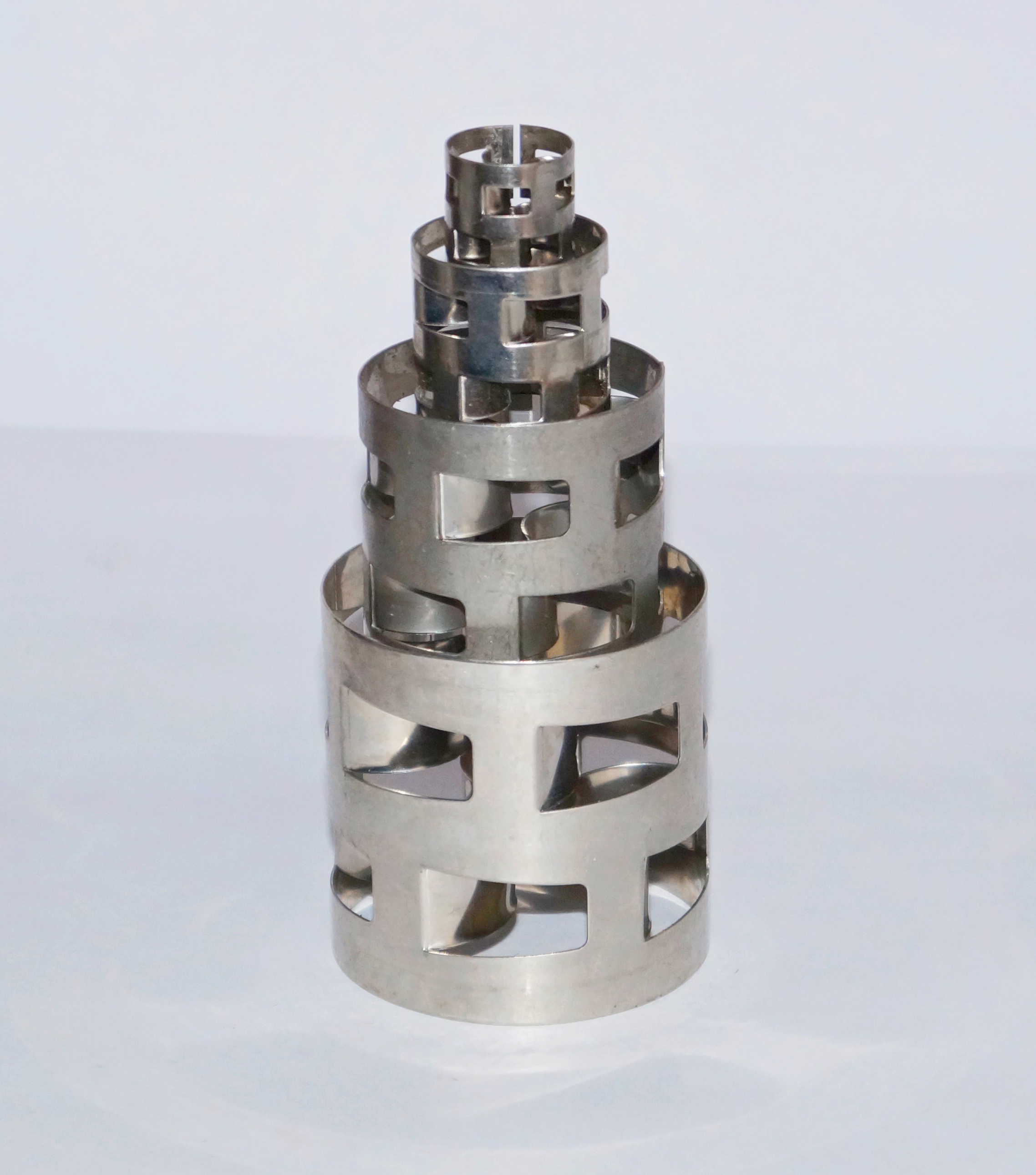

Choose from Random Packing (such as Pall Rings, Saddles, Raschig Rings) and Structured Packing (corrugated and wire mesh styles) crafted from stainless steel, carbon steel, Polypropylene (PP), Polyvinyl Chloride (PVC), or ceramic. These materials ensure optimal compatibility and performance across various process demands, including resistance to harsh chemicals and wide temperature ranges.

Efficiency and Performance Advantages

With surface area values up to 800 m/m and optimized packing density, both random and structured packing enhance column efficiency by maximizing gas-liquid interaction while minimizing pressure drop. Their design promotes efficient mass transfer, uniform liquid distribution, and high capacity for liquid and vapor throughput, making them suitable for a range of pressure scenarios.

Installation and Maintenance Made Easy

Packing modules are designed for loose or stacked insertion inside process towers, eliminating the need for complex mechanical connections. The self-cleaning properties and minimal clogging tendencies significantly reduce operational maintenance, providing long-term reliability and reduced downtime for industrial users.

FAQs of Random and Structure Packing:

Q: How do I choose between random and structured packing for my process column?

A: The selection depends on your applications demands for efficiency, pressure drop, and throughput. Structured packing offers a higher surface area (up to 800 m/m), ideal for high-efficiency separation, while random packing is often preferred for cost-effectiveness and easier installation in columns with broader tolerances.

Q: What materials are available for packing, and how do I select the right one?

A: Packings are made from stainless steel, carbon steel, PP (Polypropylene), PVC, and ceramic. Select the material based on temperature range, chemical compatibility, and specific process requirements. For high resistance to acids and solvents, plastics or ceramics are suitable; metals cater to higher strength and broader temperature conditions.

Q: Where are random and structured packings typically used?

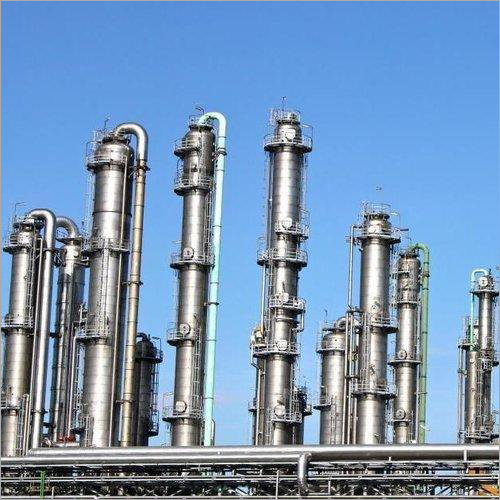

A: These packings are commonly used in distillation, absorption, stripping, extraction columns, and air or water treatment units. Industries such as chemical manufacturing, petrochemicals, and environmental engineering benefit greatly from their application.

Q: What is the installation process for these packings inside a column?

A: Random and structured packings are generally loaded loose or in stacked modules into columns without any need for permanent mechanical fixtures. They are arranged according to predefined patterns to optimize surface area and contact efficiency without requiring special connections.

Q: What are the maintenance requirements and operational advantages of these packings?

A: Both random and structured packings are designed for low maintenance, benefiting from self-cleaning action and minimal clogging tendency. This helps in reducing downtime and ensures reliable performance over extended operational periods.

Q: Can these packings handle wide temperature and pressure ranges?

A: Yes, depending on the material selected, the packings withstand temperatures from -40C up to 290C. They are suitable for both low and moderate pressure operations, making them versatile for diverse industrial needs.
